300W Single Shuttle Trolley PCB Conveyor SMT Traverse Conveyor

Brand Name : UA

Model Number : TS-250

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 15 units per month

Delivery Time : 5-20 days

Packaging Details : vacuum packing for sea transportation

PCB width : 50*50-450*250

Power supply : AC 220V 50/60 Hz

Control mode : PLC + touch panel screen

Air supply : 4-6kg/cm²

New weight : 300 kg

Machine dimension : 200 * 500 * 1000 mm

Contact Now

PCB Conveyor

Traverse conveyor Shuttle conveyor

Description

This unit is used for connecting 2 SMT lines, or change the PCB moving direction in U shape line.

Machine size: L200*W500*H1000 /mm

New weight: 300Kg

Max PCB width: L450mm*W250mm

Power: 300W

Power supply: AC220V,50/60Hz

Control mode: PLC + touch panel screen

Features

User friendly touch panel screen + PLC control
Operation mode: Collect PCBs from two lines to one line / Distribute PCBs from one line to two lines.
Single shuttle trolley, dual shuttle trolley, or customized suit wide range of requirements
Smooth and parallel width adjustment
Fast, smooth and precise indexing (step motor)
Variable speed control
SMEMA compatible
Different lengths available upon request
Bigger size PCB available upon request

Specifications

Size	Lane	Model	PCB Dimension (mm)	Machine Dimension (mm)	Weight (kg)
M	Single shuttle trolley	TS-250	5050-450250	17505001250	240
L	Single shuttle trolley	TS-460	5050-450350	Customized5001250	X
LL	Dual shuttle trolley	TS-460Ⅱ	5050-450350	Customized 5001250	X

Product Tags:

300W Single Shuttle Trolley PCB Conveyor

Single shuttle trolley SMT Traverse conveyor

300W SMT Traverse Conveyor

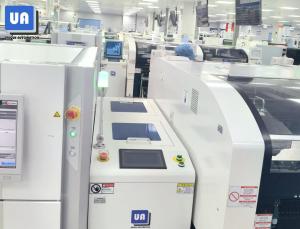

300W Single Shuttle Trolley PCB Conveyor SMT Traverse Conveyor Images
