Air Cylinder AC380V Lead Free Wave Solder Equipment 750mm Conveyor RF-350A

UNIQUE AUTOMATION LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Air Cylinder AC380V Lead Free Wave Solder Equipment 750mm Conveyor RF-350A

Brand Name : UA

Model Number : RF-350A

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 25 units per month

Delivery Time : 5-30 days

Packaging Details : vacuum packing for sea transportation

Weight : 1550 kg

Control : PLC + Temp. control meter

Preheater : Ceramic IR heating pipe

Solder pot material : Stainless steel 316L (or Titanium alloy)

Conveyor width adjust : Electric control

Transmission Method : Air cylinder

Cooling type : Forced air cooling

Power supply : 3P/AC380V 3P/AC 220V

Preheating zone length (mm) : 1800

Solder pot capacity (kg) : About 400kg

Dimensions : 4200*1400*1700 mm

Conveyor Height : 750mm

Flux feeding : Auto feed

Contact Now

Wave Soldering Machine

Easy Operate Lead Free Wave Solder Equipment RF-350A

Basic Date of wave Solder Machine RF-350A

Wave solder RF-350A
Preheating System
Preheating Model IR tube Option : Hot Air Convection
No. of Preheating Zones 3
Preheating Length 1800 MM
Preheating Temp. Room Temperature : ~300C
Warm Time Approx. 20/min
Conveyor System
PCB Width ( L x W ) 350 MM
Conveyor Direction Optional
Conveyor Height 750 MM
Componet Clearance (mm ) 130 MM
Conveyor Width Adjustment Manual
Conveyor Angle 4 ~ 6 C
Spraying System
Transmission Method Air cylinder
Spraying Pressure 0.25MPa ~ 0.4MPa
Flux Flow Flux Flow meter
Auto Flux Feeding Optional
Exhaust Method Upper Exhaust
Exhaust Capacity 25M3/min


The Function of Wave Solder Equipment

Wave soldering is used to solder the components inserted on the PCB to play a role of

connection and fixation.

Feature of Wave Soldering Machine

1. The whole machine adopts Siemens PLC+ Lenovo computer + temperature control module

control, stable and reliable.

2. Powerful control software, running in Windows 7 system, English and Chinese can be

switched at any time.

3. IPC controls whole process, IPC+UPS+Controller forms a reliable system.

4. Stepper motor flux spraying device, precise motion, lose noise, suitable for frequent

action,long worklife.

5. Japanese 7-UP spray nozzle, spray area and deepness are adjustable.

6. Flux forced supply system to maintain constant flux supply pressure.

7. Perfect flux recovery and exhaust filtration system, beneficial to environmental protection.

8. 4 preheater total length: 2000mm.

9. Heating elements modular design, maintenance is convenient.

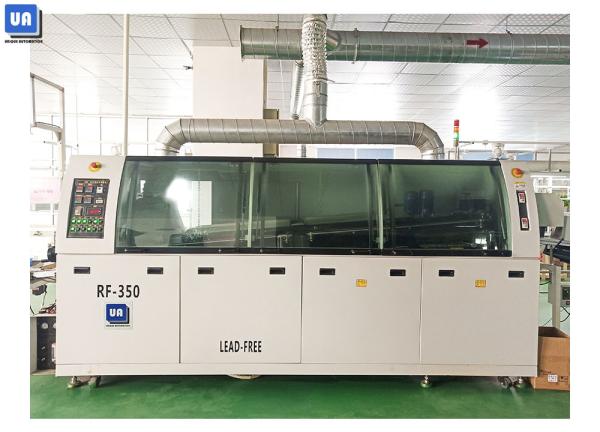

The Picture of Wave Soldering Machine

FAQ

Q1: Are you a trade company or manufacturer ?

We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line. OEM & ODM service are available.

Q2: What is your delivery date?

The delivery date is about 20-30 working days after receive the payment.

Q3: Whether these products have quality assurance ?

We have strict QC and all products have 100% quality tested before delivery.

Q4 : What is your payment terms?
T/T, L/C, etc

Q5: If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory and we will arrange the free training for you.

Q6: Why choose UA ?

Experienced in design and manufacturing of SMT equipment, UA is one of the most professional solution providers in the SMT equipment market.
