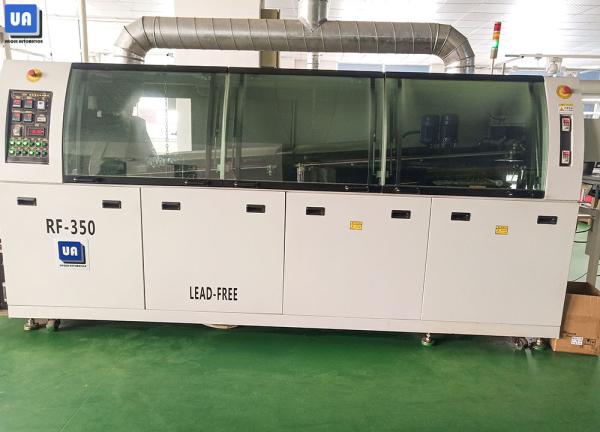

Wave Soldering Machine RF-350A
LED Production Machine SMT Lead Free Wave Soldering Machine RF-350A
Information about RF-350A Wave Soldering Machine
| Model | RF-350A |
| Conveyor System |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| PCB Width ( L x W ) | 350 MM |
| Preheating System |
| No. of Preheating Zones | 3 |
| Preheating Temp. | Room Temperature : ~300C |
| Preheating Length | 1800 MM |
| Warm Time | Approx. 20/min |
| Spraying System |
| Flux Flow | Flux Flow meter |
| Exhaust Capacity | 25M3/min |
| Exhaust Method | Upper Exhaust |
| Preheating Model | IR tube Option : Hot Air Convection |
| Transmission Method | Air cylinder |
Features of Wave Solder Machine RF-350A
Spry System
◆ With Lumina (Japan) nozzle, the spray range is20-65mm, the nozzle height is 50-80mm, and the maximum
flow rate is 60ml/min.
◆ Uses AirTAC (Taiwan) filter, pointer gauge shows air pressure, all spray system pipes are acid and alkali
resistant corrosion protection pipes.
◆ Spraying system adopts scanning spraying method, limit switch and entry eyesight are combined to control,
and PCB is automatically detected by inductive spraying according to the speed and width of PCB, so that
the wetting range of flux can achieve the best effect. Inlet spray head and stepping motor are efficient,
stable and reliable.
◆ Stainless steel bent forming tray is used underneath the spray head for loading wastewater and flux,
which can be extracted and cleaned at will.
◆ The air extraction system is a superimposed automatic recovery system with three layers of stainless steel
wire mesh filtration to minimize residual flux blockage in the air extraction pipeline by utilizing the fluid
characteristics to filter excess flux.
◆ Pneumatic air knife, which blows excess flux during spraying into the recovery tank to prevent flux from entering
the preheating zone and ensure production safety.
◆ All stainless steel + aluminium alloy support, easy cleaning and maintenance, strong corrosion resistance, durable.
